Miscibility study of poly acrylamide (PAM) and Acacia Senegal (gum arabic) blends

Document Type : Research Article


1 Department of Chemistry, ABU Zaria

2 Department of Chemistry, Ahmadu Bello University Zaria, Nigeria

3 Nigerian Institute of Leather and Science Technology Samaru, Zaria


The work entails the viscometric study of a common plant gum found in Nigeria (Acacia Senegal) blended with polyacrylamide (PAM). The gum was purified after collected and mixed in specific ratios of 10:90, 30:70, 50:50, 70:30 and 90:10 with PAM, before they were subjected to rheological study. The intrinsic, relative and specific viscosity for the bends were determined and presented in the research work. The plots of the relative viscosity against concentration of the gums at different temperature vary significantly at higher concentration, while the viscosity for gum Arabic/PAM (90:10) showed the most distinct variation between different temperatures. The result was found to be agreement with some other similar research in the literature. PAM was found to be more viscose than gum Arabic at both temperatures, while the viscosity index such as intrinsic, specific and relative viscosity for the synergistic combination between the polymers were found to decrease as we increased the composition of gum Arabic within the blend.

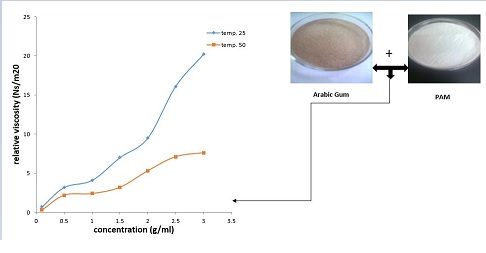

Graphical Abstract

Miscibility study of poly acrylamide (PAM) and Acacia Senegal (gum arabic) blends


[1] U. W. Gedde, Crystalline polymers, in Polymer Physics. 1999, Springer. p. 131-167.
[2] J. P. Harmon,and L. M. Clayton, Polymer/carbon nanotube composites, methods of use and methods of synthesis thereof. 2008, Google Patents.
[3] F. Shakerian, et al., Advanced polymeric materials: Synthesis and analytical application of ion imprinted polymers as selective sorbents for solid phase extraction of metal ions. TrAC-Trend. Anal. Chem., 83 (2016) 55-69.
[4] M. A. Haney, The differential viscometer. I. A new approach to the measurement of specific viscosities of polymer solutions. J. Appl. Polym. Sci., 30 (1985) 3023-3036.
[5] Z. Awdeh, A. Williamson, and B. A. Askonas, Isoelectric focusing in polyacrylamide gel and its application to immunoglobulins. Nature., 219 (1968) 66-67.
[6] G. Williamson, and A. Cervenka, Characterization of low-density polyethylene by gel permeation chromatography-I the universal calibration curve and mark-houwink equation. Eur. Polym. J., 8 (1972) 1009-1017.
[7] D. T. Stibbe, and J. Tennyson, Comment onPotential energy surfaces of excited states of H2. Chem. Phys. Lett., 285 (1998) 114–120.
[8] S. Farshbaf, et al., Propargylic ureas as powerful and versatile building blocks in the synthesis of various key medicinal heterocyclic compounds. Chem. Rev. Lett., 1 (2018) 56-67.
[9] E. Jafari, et al., An efficient and facile synthesis of the coumarin and ester derivatives using sulfonated polyionic liquid as a highly active heterogeneous catalyst. Chem. Rev. Lett., 2 (2019) 123-129.
[10] F. Behmagham, Z. Asadi, and Y. Jamal Sadeghi, Synthesis, spectroscopic and computational investigation of bis (3-methoxyphenylthio) ethyl) naphthalene. Chem. Rev. Lett., 1 (2018) 68-76.
[11] D. E. Arthur, The use of strawberry and arabic gum blend as an inhibitor for the corrosion of aluminium in an acidic medium. Chem. Rev. Lett., 2 (2019) 69-75.
[12] M. Dalen, and P. Mamza, Some physico-chemical properties of prepared metallic soap-driers of aluminium, copper and zinc. Sci. World. J., 4 (2009) 7-9.
[13] O. A. W. Ilavbare, et al., Hybridisation of Carbon Black: Cashew Nut Shell Powder as Fillers on the Mechanical Properties of Natural Rubber Composites. Compos. Mater., 2 (2018) 49-54.
[14] P. A. Mamza, et al., Comparative study of phenol formaldehyde and urea formaldehyde particleboards from wood waste for sustainable environment. Int. J. Sci. Technol. Res, 3 (2014) 53-61.
[15] J. R. Mujaheddin, K. Sheshappa Rai, and G. Guru, Miscibility studies of agar-agar/starch blends using various techniques. Int. J. Res. Pharm. Chem., 2 (2012) 2231-2781.
[16] I. A. Khan, and E. A. Abourashed, Leung's encyclopedia of common natural ingredients: used in food, drugs and cosmetics. 2011: John Wiley & Sons.
[17] B. J. Palmer, Transverse-current autocorrelation-function calculations of the shear viscosity for molecular liquids.
Phys. Rev. E., 49 (1994) 359-366.
[18] L. S. Lai, and H.-F. Chiang, Rheology of decolorized hsian-tsao leaf gum in the dilute domain. Food. hydrocoll., 16 (2002) 427-440.
[19] T. Heitmann, and A. Mersmann, Determination of the intrinsic viscosity of native potato starch solutions. Starch‐Stärke., 47 (1995) 426-429.
[20] W. Yang, and M. Rao, Complex viscosity‐temperature master curve of cornstarch dispersion during gelatinization. J. Food. Proces. Eng., 21 (1998) 191-207.
[21] J. L. da Silva, M. Gonçalves, and M. Rao, Viscoelastic behaviour of mixtures of locust bean gum and pectin dispersions. J. Food. Proces. Eng., 18 (1993) 211-228.
[22] B. G. Launay, B. Cuvelier, and S. Martinez-Reyes, Viscosity of locust bean, guar and xanthan gum solutions in the Newtonian domain: a critical examination of the log (ηsp) o-log C [η] o master curves. Carbohydr. Polym., 34 (1997) 385-395.
[23] E. O. Kraemer, Molecular weights of celluloses and cellulose derivates. Ind. Eng. Chem., 30 (1938) 1200-1203.
[24] T. Sornsrivichai, A study on rheological properties of tomato concentrates as affected by concentration methods, processing conditions and pulp content (viscosity, flow properties, tomato paste, food suspensions). 1987.
[25] T. Tanglertpaibul, and M. Rao, Intrinsic viscosity of tomato serum as affected by methods of determination and methods of processing concentrates. J. Food. Sci., 52 (1987) 1642-1645.
[26] D. E. Arthur, C. Gimba, and E.O. Nnabuk, Miscibility studies of cashew gum and khaya gum exudates in dilute solution by viscometry and FTIR analysis. Am. J. Eng. Res., 8 (2014) 1-12.
